Cabinet Lighting Made Easy
For Puck Lights and Strip Lights

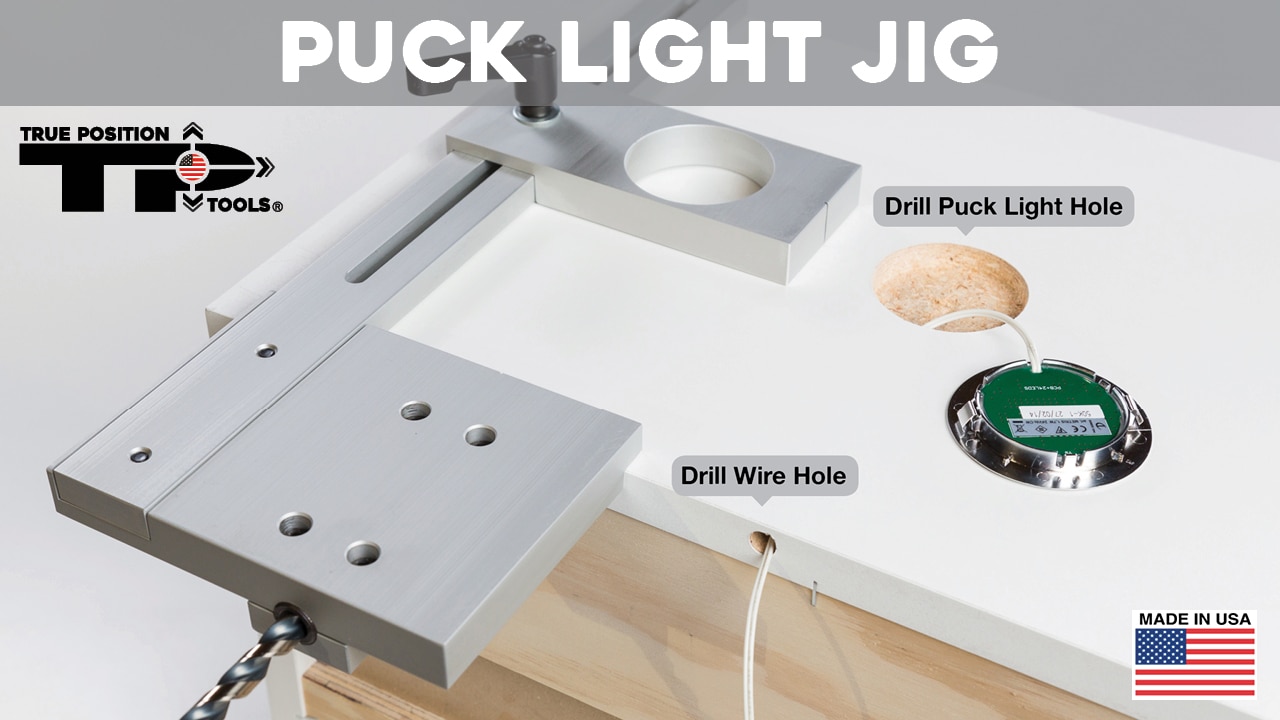

Clamp Jig in Desired Light Location
Drill Light Hole to Desired Depth Using the Adjustable Stop
Leave Clamps in Place, Drill Wire Hole Until Drill Bit Reaches Light Hole
Remove Clamps and Feed Wire Through by Hand
The LED Puck Light Installation Jig Kit is everything you need to start making a profit with cabinet lights.
Save time by installing wire and puck lights in 5/8” or 3/4” panels without using a false bottom and create a cleaner, custom look. TP-PLJ can also be used for strip lights, switches, and concealing wires.
Puck Light Jig Body
2-1/4″ Forstner Guide
12″ x 3/8″ Drill Bit
2-1/4″ Forstner Bit
2-1/8″ Forstner Bit
Blow Molded Carrying Case
Bushings: 2x Case Hardened Steel Split Bushing for fast chip relief
Weight: 9.17 lbs
Bushings: 3x 5mm case hardened steel, Lifetime Warranty
Notice: Proposition 65
Our “Precision Guarantee” promise is that each jig we produce is created to our exact specifications, with the highest quality American parts. We have meticulously refined professional grade components and a proprietary aerospace manufacturing process that makes accuracy its primary focus. We adhere to strict measurements and fine craftsmanship on our end because we know our customers value it on theirs. And we insist on extra time to test and precisely align each jig prior to shipping. Our goal is for everyone who purchases our jigs to experience unequaled precision and premium quality, along with measurable time and cost savings in using a superior tool. If you receive your light jig and feel that it’s not one of the best products you’ve ever purchased, return it to True Position Tools within 60 days of purchase for a full refund.
Excellent jig – clever and well made with high quality components. One sliding positioner works with both 2-1/4 and 2-1/8 Forstner bits via nylon reducer/positioner bushings. Other size sliding positioners are available for 35mm, 55mm and 68mm Forstner bits.
This paid for itself in a single job. Use was incredibly easy and no more false bottoms to build and install. Do not hesitate to buy, it works beautifully.
Bought this jig to install 8 lights in a euro-box kitchen. We put in 8 Tresco L-1EQPWNI-KIT EquiLine lights in about a total of 45 minutes from start to finish. Eliminating the false bottom saved me hours.
I should mention that you will need to consider where to run the wire from the bottom of the cabinet. This was not addressed very well in the instructions but most people using this will know what to do with it. I ran mine up the back of the cabinet to the top of the cabinet, where I daisy-ed my power supply to the other lights. You may need
