Cabinet Hardware Jig MAX

Our complete hardware drilling solution has the largest capacity, capable of installing hardware up to 38” center to center, with rapid centering, and perfect shelf pin holes.

Cabinet Hardware Jig MAX

Cabinet Hardware Jig MAX

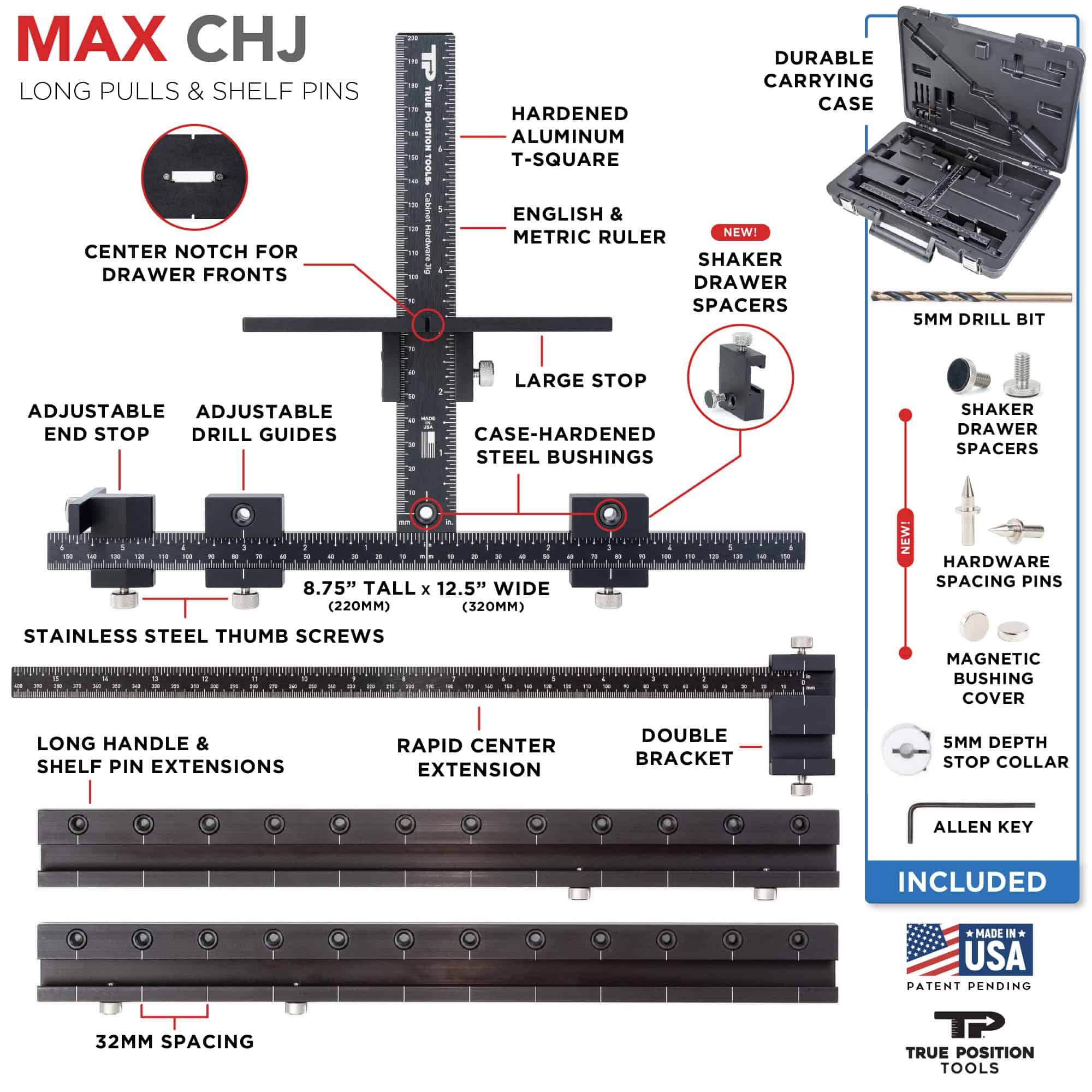

  • ✓  Long Pull & Shelf Pin Extensions (TP-CHJ-LP)
  • ✓  Rapid Center Extension (TP-CHJ-RC)
  • ✓  5mm Stop Collar + Allen Wrench (TP-5MMSC)
  • ✓  Large Stop
  • ✓  Drill Guides (x2)
  • ✓  Shaker Drawer Spacers (x2)
  • ✓  End Stop
  • ✓  5mm Drill Bit HSS
  • ✓  Custom Molded Carry Case (TP-CHJ-CASE)

Max Handle Width: 38″ Center to Center
Max Centering on Drawer Front Width/Door Height: 42” With End Stop, Infinite With Center Mark
Max Shelf Pin Hole Pattern: 25 Holes
Tool Dimensions: 9.5” x 12.5″ x 2”
Max Drawer Front Centering Height: 16″
Min. Width Door Panel (Stile/Rail): 1/2″
Min. Placement From Edge of Door/Drawer Front: 1/4″
Bushings: 5mm x 1/2″ Length
Material: Hardened Anodized Aluminum, Case Hardened Steel Bushings, Stainless Steel Thumb Screws
Carrying Case: Hardened Plastic, Stainless Steel Latches
Weight: 8 lbs With Case
Notice: Proposition 65

Cabinet Hardware Jig MAX + Case


In stock


If this isn’t one of the best tools you have ever owned simply return it for a full refund within 60 days of purchase.

Patent Pending


Made in USA Since 1996

  • The Original

    Made in the USA for over 25 years with proven results you can count on. The COMPLETE solution to hardware. Install hardware up to 38" C-C (960mm). Included Rapid Center Extension (TP-CHJ-RC) provides a stop for drawer fronts up to 42" wide. Doubles as a portable 32mm shelf pin jig.

  • Perfect Every Time

    Precision machined and True Calibrated™ 10x more precise than imitations.

  • Hardware Made Easy

    Just tighten the thumb screws, hold and drill. Save tedious hours spent measuring or making wood jigs.

  • Lifetime Bushing Warranty

    Replaceable case hardened steel bushings rated for 100,000+ uses

10x more precise than imitations, with proven results you can count on. Patent pending True Calibration system with Perfect Match laser engraved rulers. The most accurate cabinet hardware jig on the market.

How It Works

TP-1935 Cabinet Hardware Jig Shelf Pin Hole Drilling Sequence

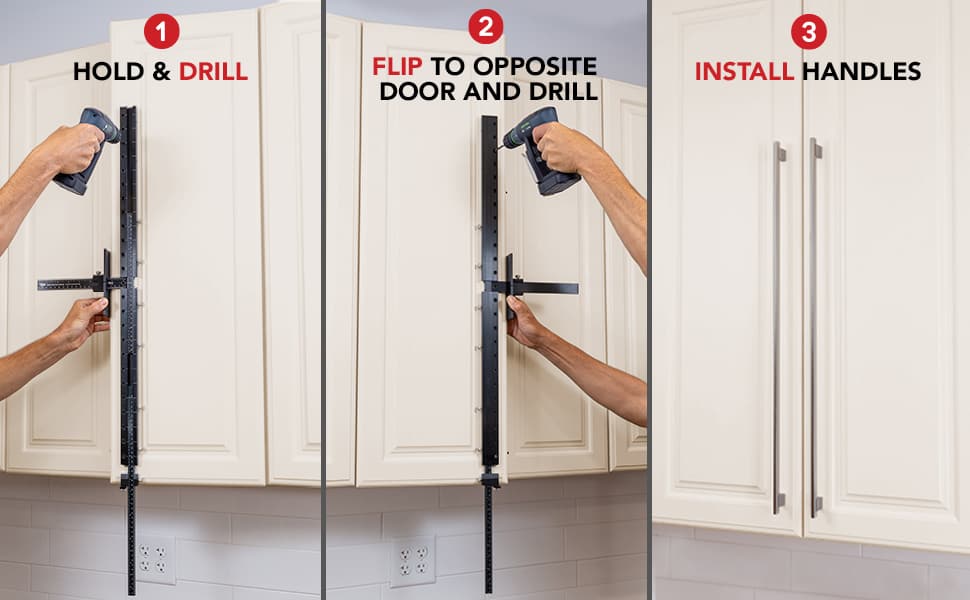

Drawer Front Hardware Installation in 3 Easy Steps

Door Hardware Installation in 3 Easy Steps

The only calibrated jig on the market, providing the accuracy needed to ensure that your hardware is perfect every time. After proprietary machining operations, we thoroughly test and then True Calibrate™ each assembled jig with our patent pending calibration system.

Aerospace machined in the USA with an unrivalled grade of precision and durability. Hardened aluminum provides the tensile strength of steel. This unique build strength allows you to drill without using clamps or pre-drilling.

Whether you are a professional or DIY’er, expect decades of ease of use and saved time. Anodized laser engraved rulers, stainless steel fasteners & thumb screws, and case hardened bushings. Includes hard carrying case.

Choose Your Cabinet Hardware Jig - ORIGINAL PRO MAX

True Position Tools are perfectly calibrated to get the job done right the first time. Guaranteed.


Cabinet Hardware Jig

Not at all! This tool is very easy to use and designed to take the frustration out of hardware installation for the homeowner and cabinet professional alike. It is used by many professionals due to the extreme time savings, unrivaled accuracy, and durable build quality.

38” CC (960mm). For even longer pulls, multiple jigs can be conjoined via thumb screws to drill for any length of handle.

Yes! Just set up the tool for one door and you can flip and drill for the next. We recommend checking that your thumbscrews are still tight before drilling the next hole.

Yes, the bushings normally used on drawer fronts are 1/2” long which gives guidance for precise placement of the holes, just be sure to hold the jig so that it’s resting on the top stop against the top of the drawer.

If you have a lot of cabinets to drill in this style, it might make sense to tape a shim to the back of the jig to let you rest the bottom of the jig against the face of the drawer front.

Either way, go carefully and you’ll have no issues, the methods above are used by thousands of installers daily and work well. With that said, we will look to offer some adhesive shims in the future; it’s not necessary, just more convenient.

Always make sure to start with a sharp drill bit. Generally chipping is not an issue with the provided drill bit. Extra precautions include taping the work surface with blue painters tape. For melamines and veneers, consider using a brad point bit.

Always use a sharp drill bit and relieve chips as you drill by pulling the drill out of the work-piece as it’s running to spin off excess wood chips. Do not apply much pressure while drilling, especially at the end of the hole. Holding or clamping a sacrificial block of scrap wood against the back of the door while you drill is recommended for extra protection against blowout. In most cases the screw head covers any minimal blowout. In extreme cases, where a screw head would not cover minimal chipping from the exit of the drill, users will drill the hole halfway with a standard drill bit, then use a tapered drill bit to finish the hole. To prevent drilling injuries, always be aware of where your hands are positioned.

1/2″ The small and large end stops can also be reversed if extra clearance is needed.


16″. Be advised, its typically not preferred to place hardware on the center of a large drawer front as it can make it more difficult to open. In most cases, placing the hardware more towards the top of the drawer front is desired for operation and aesthetics.

Over the years, many! Changes to the jig include a larger top stop, more durable thumb screws, a redesigned end stop, and extending the bottom rail of the T-square by approx. 1”. We now also laser etch the numbers into the jig, where before we screen printed them over the aluminum T-square. Most recently, the tool has started shipping in a hard-plastic case instead of a cardboard box.

Yes! Every part of the tool is either covered under warranty or can be purchased separately. We have many commonly needed replacement parts available on our website. Please contact us here or call 760-279-3033 if you are having trouble finding the part you need.

Top (large) stop and T-square parts are only available as a set, as they need to be precision-mated in-house to a tolerance of .001” square for us to be able to guarantee their accuracy.
